What Is a Load Moment Indicator (LMI) and Its Purpose in Crane Operations?
Written by Staff Writer | Edited by Michael Purser
Crane safety depends on knowing how much weight your equipment can safely lift in operation. Even skilled operators can make mistakes when judging distance, radius or weight. A small miscalculation can lead to serious accidents, including tipping or structural failure.
The stakes are high. More than 40 workers die every year in lifting accidents. The most common cause is human error.
Safety violations from lifts, hoists and derricks are also among the most severe citations OSHA hands out, typically involving:
- Workers crushed
- Workers struck by machines
- Dropped items from rigging failure
- Falling from heights
Proper crane operator safety training is critical to keep users safe and avoid fines and downtime. For example, learning about load moment indicators.
What Is Load Moment and a Load Moment Indicator (LMI)?
To understand the importance of an LMI, you need to know what load moment is. Load moment is a physics measure of rotational force, calculated by multiplying the total force being exerted, its distance from the point of rotation and the angle of the boom. The heavier the load, the longer the crane and the faster the movement, the more dangerous the load moment.
A crane LMI is a safety device that helps you understand whether a lift is safe or not. An LMI measures the relationship between the weight being lifted and the machine’s rated capacity. When a lift approaches overload, the LMI warns the operator.
An indicator device works by watching the interaction between boom angle, radius and the actual weight on the hook in real time, performing complex calculations while the operator works. This helps workers avoid lifting more than the hoist can safely support.
Operators who want to build skills and confidence can explore online crane operator training for a deeper understanding of these systems.
How Does a Load Moment Indicator System Work?
Modern LMIs use multiple and various sensors to collect data, which is processed by advanced software and displayed to workers for clear, real-time information. These technologies are integrated to provide a comprehensive safety solution, ensuring that all components work together to enhance operational safety and efficiency.
What Sensors and Controls Make Up the System?
The load moment indicator sensor reads the force being applied to the equipment as it lifts. A complete sensor suite usually tracks:
- Boom angle
- Boom length
- Radius
- Hydraulic pressure
These readings go to a computer system inside the hoist. The computer compares the data against the hardware’s capacity chart to make sure equipment is not operating in an unsafe condition.

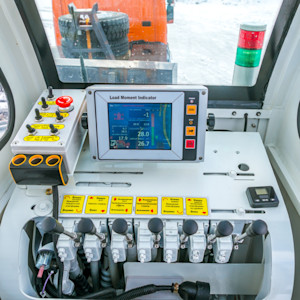

What Does It Look Like?
During a lift, an electronic display shows weight, radius and capacity limits in real time. If the lift gets close to a weight it cannot safely handle, alarms or warning lights are triggered. This is a major part of load moment indicator operation, because it alerts users before dangerous conditions occur.
Operators must look for warning signs and react properly to avoid dangerous situations in accordance with OSHA 1926.1417 and other requirements.
To build these skills, you can complete an online operator safety course that explains LMI function and safe use.
Why Is Accuracy Important for Safe Operation?
If the readings are wrong, controllers may not realize there’s a potential problem. Accurate readings prevent tip-overs, boom stress failures and dropped items. In other words, preventing accidents while protecting workers and equipment.
Only workers who are trained in operating heavy equipment and have completed a certification course in crane safety should work on this type of equipment.
What Types of Lifts Use LMIs?
Most modern designs use LMIs in various applications and crane systems because they deal with changing weights, different boom angles and constantly shifting conditions.
LMIs help prevent overloading in these different scenarios by monitoring load conditions and issuing warnings when limits are approached.
Tower
Tower units lift items to significant heights, often over the heads of workers on active jobsites. Their height, wind exposure and long boom reach make for potentially unsafe conditions.
Mobile
Mobile units face uneven ground, soft soil, outriggers that may not be level and changing lift radii. Because everything moves, the LMI is the operator’s most important tool for staying safely inside rated limits.
What Are the Benefits of Using an LMI?
LMIs support safe lifting and help operators make better decisions in the cab. These devices:
- Help users stay within safe capacity.
- Reduce operational error.
- Prevent dangerous conditions.
- Support safer lifts.
- Provide real-time warnings.
- Improve jobsite awareness.
These tools support core principles that operators learn during formal training, which are necessary to build a career as a crane operator.
What Should You Do If an LMI Shows an Error?
If the system shows an error or warning, you need to understand the steps to take to prevent harm before continuing the lift.
What to Do When the System Alerts You to a Hazard
When an alarm sounds, stop the lift immediately. Lower the weight to a safe position and recheck rigging, radius and weight. If the weight loaded is outside the capacity rating, it is unsafe to continue.
When Should a Crane Be Taken Out of Service?
If the LMI is malfunctioning, the equipment should not be used until it has been inspected and repaired. OSHA expects employers to keep all equipment out of service if systems are not working properly.
Load Moment Indicator Troubleshooting Basics
The device itself may be malfunctioning. Common issues include:
- Faulty sensors
- Loose wiring
- Display screen errors
- Incorrect calibrations
- Settings that do not match the required configuration
You should never assume the device is faulty and attempt to bypass alarms or ignore warnings. Safe action starts with proper indicator troubleshooting and reporting issues to a qualified technician for load moment indicator maintenance.
How Can Training Help You Use an LMI Safely?
Understanding LMIs is essential for safe lifting, career advancement and certification preparation. Training helps operators learn how to read displays, react to warnings and use the device correctly.
OSHA Education Center makes training easy with:
- 100% online lessons
- 24/7 access from any connected device
- Automatic progress saving
- Courses that fit any schedule
Start your education with a crane operation course or a program on crane, derrick, hoist, elevator and conveyor safety. These online options help you build the foundation needed for safe operation.
Is LMI Knowledge Required for Certification or Licensing?
To qualify as a lift operator, you must understand loading charts, safe lifting limits and how safety systems work. That includes LMIs. While testing requirements vary by state or certification providers, understanding how LMIs work will help you pass written exams and perform well during practical evaluations.
Online courses cannot guarantee certification, but they can prepare you for it.
Take the Next Step Toward Safer Operations
Load moment indicators protect workers, prevent accidents and help operators stay within safe limits. Understanding how these systems work is essential for long-term career growth and daily safety.
You can strengthen your skills and build your expertise by enrolling in online training. Start learning today and build confidence every time you step into the cab.
